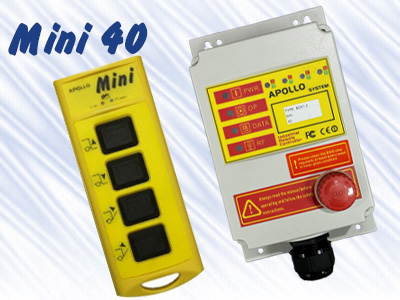

APOLLO mini series
System Features:
-
Pocket-size transmitter, light, more handy for operation.
-
Advance program design, quick & good performance on movements.
-
ABS+PA transmitter housing, water / shock / dust proof.
-
Single-low button transmitter, compact and lighter design, ensure safe & convenient operation.
-
Receiver with 4-LED indicators, quick, simple judgment for operation status & after-service repair.

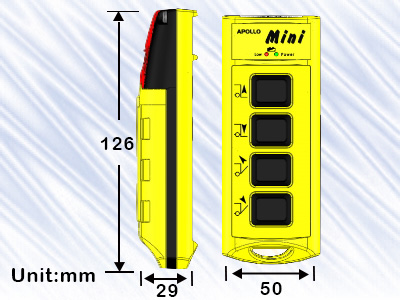

| Transmitter Specifications | |
|---|---|
| Operation range | 30M ( open space ) |
| Frequency range | 868Mhz |
| Operation power | < 10mW |
| Response time | 100mS |
| Antenna | internal type |
| Operation | -10%C ~ + 75*C |
| Source voltage | 1.5V(AA)*2pcs |
| Enclosure | IP65 |
| Housing | ABS+PC |
| Security code | 16777216 sets |

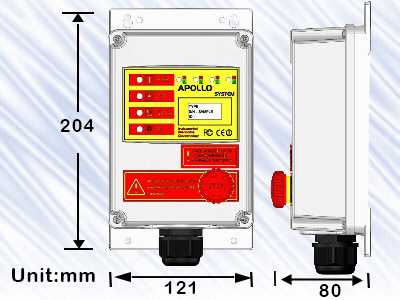

| Receiver Specifications | |
|---|---|
| HF sensitivity | -110dBm |
| Frequency range | 868Mhz |
| Antenna | internal type |
| Operation temperature | -10°C~+75°C |
| Source voltage | 9~30V DC |
| Enclosure | IP67 |
| Housing | ABS |
| Consumption | <12W |
| APOLLO Model Option | ||||
|---|---|---|---|---|
| Model | Control Points | Speed | Distance | Specifications |
| APOLLO Mini 20 | 2 pushbuttons | 1 step | 30M | with RED EMS stop ( push type ) |
| APOLLO Mini 30 | 3 pushbuttons | 1 step | 30M | with RED EMS stop ( push type ) |
| APOLLO Mini 40 | 4 pushbuttons | 1 step | 30M | with RED EMS stop ( push type ) |
| APOLLO Mini 20C | 2 pushbuttons | 1 step | 30M | with RED EMS stop ( push type ) |
| APOLLO Mini 30C | 3 pushbuttons | 1 step | 30M | with RED EMS stop ( push type ) |
| APOLLO Mini 40C | 4 pushbuttons | 1 step | 30M | with RED EMS stop ( push type ) |
| APOLLO Mini 20Ca | 2 pushbuttons | 1 step | 30M | with RED EMS stop ( push type ) |
| APOLLO Mini 30Ca | 3 pushbuttons | 1 step | 30M |
with RED EMS stop ( push type ) |
| APOLLO Mini 40Ca | 4 pushbuttons | 1 step | 30M |
with RED EMS stop ( push type ) |
APOLLO Mini Series
Fittings
Parts
MTC
Specifications：transmitter casing (incl. RED stop，Rrubber pushbuttons，battery case)
